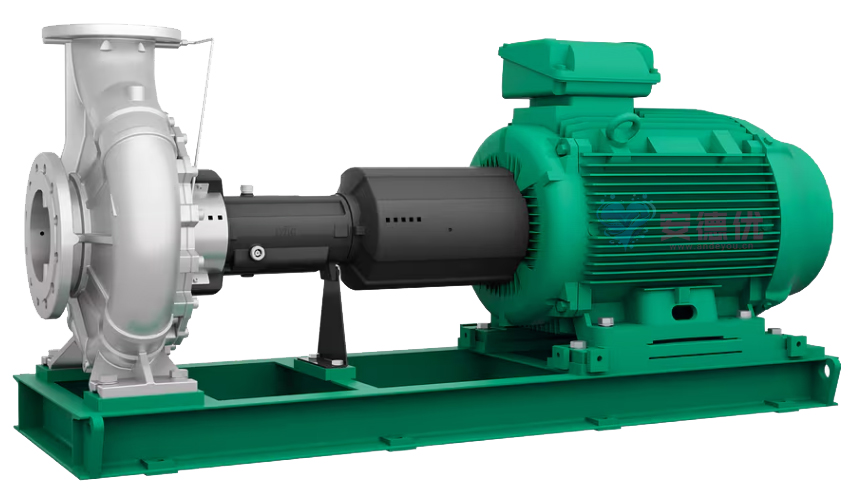

威乐Atmos GIGA-NX分体式卧式端吸管道离心泵(不锈钢)

Atmos GIGA-NX 65/315-55/2W-GB3、Atmos GIGA-NX 65/315-75/2W-GB2、Atmos GIGA-NX 65/315-75/2W-GB3、Atmos GIGA-NX 65/315-90/2W-GB2、Atmos GIGA-NX 65/315-90/2W-GB3、Atmos GIGA-NX 65/315-110/2W-GB2、Atmos GIGA-NX 65/315-110/2W-GB3、Atmos GIGA-NX 80/160-1.1/4W WOS-GB2、Atmos GIGA-NX 80/160-1.1/4W WOS-GB3、Atmos GIGA-NX 80/160-1.5/4W WOS-GB2、Atmos GIGA-NX 80/160-1.5/4W WOS-GB3、Atmos GIGA-NX 80/160-2.2/4W WOS-GB2

威乐Atmos GIGA-NX分体式卧式端吸管道离心泵，采用全不锈钢材质，具备卓越的耐腐蚀性与超长使用寿命，专为严苛工业环境打造。其创新的分体式结构设计，使核心部件维护与更换无需拆卸管路，极大降低停机时间与维护成本。该泵融合高效水力模型与宽频电机技术，实现大幅度节能降耗，稳定应对大流量、高扬程工况。广泛适用于暖通空调、区域能源站、工业循环系统及大型建筑供水等关键领域，是追求极致可靠性与运行经济性的智慧选择。

电话咨询

在线留言

功能特点

规格参数

可靠且坚固耐用的标准泵，用于工业应用。

Wilo-Atmos GIGA-NX有多种型号，可提供不同电机和材料，运行温度范围达到了-20至+140 °C。得益于这些优势，该干转子泵成为了可配置的全能型产品，适用于各种工业应用。

水泵专为连续运行而设计，采用防腐蚀不锈钢水力部件和免维护滚珠轴承，可确保长使用寿命。易拆卸短节有助于在维护时快速更换机械密封。Wilo-Atmos GIGA-NX可通过Wilo-EFC变频器进行转速控制，并可配备温度和振动监控装置，以便及早发现潜在故障。

Wilo为此额外提供售后服务套餐WiloCare，全面囊括从试运行到维护等各个生命周期。通过Wilo远程监控系统保证运行可靠、放心无忧。

特点/产品优势

改进的水力部件和GB2/GB3电机提高了总效率，从而实现节能
符合相应的ISO标准（2858、5199），满足工业要求
水力部件和机械密封可进行配置，因而用途广泛
所有铸件均带有电泳涂镀，确保了高耐腐蚀性和长使用寿命
采用标准化尺寸，各种型号的电机和叶轮采用特定应用材料制成，因此可进行个性化定制
便于操作的距离联轴器采用“后面拔出”结构，便于维护
经过改良的叶轮设计降低了压力，实现了高度的运行可靠性

结构

单级低压离心泵，轴向吸入，安装于底座上。标准规格，带易拆卸短节。

应用

泵送采暖水（根据 VDI 2035 标准）、冷水和水-乙二醇混合物，供暖系统、冷水系统和冷却系统中不含磨损性物质。
应用在灌溉、楼宇技术、一般工业、电站等领域。

设备/功能

单级低压离心泵，采用单元组合结构形式，带联轴器、联轴器护罩、电机和底座

机械密封

型号代码

示例	Atmos GIGA-NX 40/200-11/2
Atmos	产品系列
GIGA	系列编号
NX	标准端吸离心泵
40	压力法兰的DN标识
200	叶轮标称直径 [mm]
11	额定功率 P2 [kW]
2	电机级数

技术数据

允许温度范围: -20 °C 至 +140 °C
电源连接 3~380 V，50 Hz
防护等级 IP55
公称直径 DN 32 至 DN 150
最大工作压力 16/25 bar

材料

水泵壳体和联接架。标准：304，其它根据要求提供
叶轮：标准：304；其它根据要求提供
机械密封：AQEGG；可根据客户需求提供其他机械密封

类型

单级低压离心泵作为带配备法兰式轴承托架的轴向吸水口和轴固定件的底座泵，用于灵活连接驱动装置
标准配置一个易拆卸短节（套筒联轴器），拆卸转子装置时不需要移动电机
变体...-P5 无易拆卸短节（降低价格，参见价格列表）

出厂状态

水泵
安装及操作说明
带裸轴的水泵或者
带联轴器和联轴器护罩的底座式泵，不带电机或者
配电动机的底座式完整安装水泵

选项

规格...-P5 无易拆卸短节（降低价格）
可应要求提供其他材料和型号
可应要求提供其他电压和频率

附件

自动转速控制：

Wilo 水泵控制系统用于对水泵功率进行自动的无级变速调控。请联络 Wilo 了解有关“控制开关和控制器”的更多信息。

调试

转速为 2900 rpm 的水泵安装在住宅建筑内时，需要采取相应的隔噪和降噪措施。
水泵特征曲线和具体的电机功率取决于被泵送的相应流体。当输送的流体的浓度和/或黏度不同时，水泵特征曲线和电机功率有很大不同。为此请注意“推荐的配置极限值”表！推荐的配置极值如下计算：从具体的水泵特征曲线中得出的 Qoptimum（水泵达到最佳效率时的流量）；从“推荐的配置极限值”表中得出的 Qmin 和 Qmax 系数。Qmin 配置= Qmin x Qoptimum Qmax 配置 = Qmax x Qoptimum 例如：规格尺寸 Atmos GIGA-NX 032-125 Qmin = 0.3 x 8 = 2.4 m3/h Qmax = 1.2 x 8 = 9.6 m3/h
负载敏感泵功率，所有 Wilo 标准泵均配备 IEC 标准电机。Wilo 控制器适合为常规形式标准电机驱动的水泵进行自动的、负载敏感的转速控制。
主机运行/备用运行

型号	电压 (V)	额定流量 (m³/h)	额定扬程 (m)	功率 (kW)	电机能效	额定转速(rpm)	口径
Atmos GIGA-NX 32/125-0.37/4W WOS-GB3	380V	17.4	6.4	0.37	CL2	1350	DN50×DN32
Atmos GIGA-NX 32/125-0.55/4W WOS-GB2	380V	17.4	6.4	0.55	GB2	1370	DN50×DN32
Atmos GIGA-NX 32/125-0.55/4W WOS-GB3	380V	17.4	6.4	0.55	CL2	1370	DN50×DN32
Atmos GIGA-NX 32/125-1.1/2W WOS-GB2	380V	35	26	1.1	GB2	2900	DN50×DN32
Atmos GIGA-NX 32/125-1.1/2W WOS-GB3	380V	35	26	1.1	GB3	2860	DN50×DN32
Atmos GIGA-NX 32/125-1.5/2W WOS-GB2	380V	35	26	1.5	GB2	2910	DN50×DN32
Atmos GIGA-NX 32/125-1.5/2W WOS-GB3	380V	35	26	1.5	GB3	2870	DN50×DN32
Atmos GIGA-NX 32/125-2.2/2W WOS-GB2	380V	35	26	2.2	GB2	2910	DN50×DN32
Atmos GIGA-NX 32/125-2.2/2W WOS-GB3	380V	35	26	2.2	GB3	2870	DN50×DN32
Atmos GIGA-NX 32/125-3/2W WOS-GB2	380V	35	26	3	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/125-3/2W WOS-GB3	380V	35	26	3	GB3	2890	DN50×DN32
Atmos GIGA-NX 32/125-4/2W WOS-GB2	380V	35	26	4	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/125-4/2W WOS-GB3	380V	35	26	4	GB3	2920	DN50×DN32
Atmos GIGA-NX 32/160-0.37/4W WOS-GB3	380V	17.6	8	0.37	CL2	1350	DN50×DN32
Atmos GIGA-NX 32/160-0.55/4W WOS-GB2	380V	17.6	8	0.55	GB2	1370	DN50×DN32
Atmos GIGA-NX 32/160-0.55/4W WOS-GB3	380V	17.6	8	0.55	CL2	1370	DN50×DN32
Atmos GIGA-NX 32/160-2.2/2W WOS-GB2	380V	37.5	35.5	2.2	GB2	2910	DN50×DN32
Atmos GIGA-NX 32/160-2.2/2W WOS-GB3	380V	37.5	35.5	2.2	GB3	2870	DN50×DN32
Atmos GIGA-NX 32/160-3/2W WOS-GB2	380V	37.5	35.5	3	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/160-3/2W WOS-GB3	380V	37.5	35.5	3	GB3	2890	DN50×DN32
Atmos GIGA-NX 32/160-4/2W WOS-GB2	380V	37.5	35.5	4	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/160-4/2W WOS-GB3	380V	37.5	35.5	4	GB3	2900	DN50×DN32
Atmos GIGA-NX 32/160-5.5/2W WOS-GB2	380V	37.5	35.5	5.5	GB2	2940	DN50×DN32
Atmos GIGA-NX 32/160-5.5/2W WOS-GB3	380V	37.5	35.5	5.5	GB3	2930	DN50×DN32
Atmos GIGA-NX 32/160.1-0,37/4W WOS-GB3	380V	11.4	9.3	0.37	CL2	1350	DN50×DN32
Atmos GIGA-NX 32/160.1-0,55/4W WOS-GB2	380V	11.4	9.3	0.55	GB2	1370	DN50×DN32
Atmos GIGA-NX 32/160.1-0,55/4W WOS-GB3	380V	11.4	9.3	0.55	CL2	1370	DN50×DN32
Atmos GIGA-NX 32/160.1-1,5/2W WOS-GB2	380V	22.9	37	1.5	GB2	2910	DN50×DN32
Atmos GIGA-NX 32/160.1-1,5/2W WOS-GB3	380V	22.9	37	1.5	GB3	2870	DN50×DN32
Atmos GIGA-NX 32/160.1-1.1/2W WOS-GB2	380V	22.9	37	1.1	GB2	2900	DN50×DN32
Atmos GIGA-NX 32/160.1-1.1/2W WOS-GB3	380V	22.9	37	1.1	GB3	2860	DN50×DN32
Atmos GIGA-NX 32/160.1-2,2/2W WOS-GB2	380V	23	37	2.2	GB2	2910	DN50×DN32
Atmos GIGA-NX 32/160.1-2,2/2W WOS-GB3	380V	23	37	2.2	GB3	2870	DN50×DN32
Atmos GIGA-NX 32/160.1-3/2W WOS-GB2	380V	23	37	3	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/160.1-3/2W WOS-GB3	380V	23	37	3	GB3	2890	DN50×DN32
Atmos GIGA-NX 32/160.1-4/2W WOS-GB2	380V	23	37	4	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/160.1-4/2W WOS-GB3	380V	23	37	4	GB3	2900	DN50×DN32
Atmos GIGA-NX 32/200-0.37/4W WOS-GB3	380V	16.3	13.5	0.37	CL2	1350	DN50×DN32
Atmos GIGA-NX 32/200-0.55/4W WOS-GB2	380V	16.3	13.5	0.55	GB2	1370	DN50×DN32
Atmos GIGA-NX 32/200-0.55/4W WOS-GB3	380V	16.3	13.5	0.55	CL2	1370	DN50×DN32
Atmos GIGA-NX 32/200-0.75/4W WOS-GB2	380V	16.3	13.5	0.75	GB2	1430	DN50×DN32
Atmos GIGA-NX 32/200-0.75/4W WOS-GB3	380V	16.3	13.5	0.75	CL2	1430	DN50×DN32
Atmos GIGA-NX 32/200-1.1/4W WOS-GB2	380V	16.3	13.5	1.1	-	1445	DN50×DN32
Atmos GIGA-NX 32/200-1.1/4W WOS-GB3	380V	16.3	13.5	1.1	CL2	1440	DN50×DN32
Atmos GIGA-NX 32/200-3/2W WOS-GB2	380V	31	50	3	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/200-3/2W WOS-GB3	380V	31	50	3	GB3	2890	DN50×DN32
Atmos GIGA-NX 32/200-4/2W WOS-GB2	380V	31	50	4	GB2	2920	DN50×DN32
Atmos GIGA-NX 32/200-4/2W WOS-GB3	380V	31	50	4	GB3	2900	DN50×DN32
Atmos GIGA-NX 32/200-5.5/2W WOS-GB2	380V	31	50	5.5	GB2	2940	DN50×DN32
Atmos GIGA-NX 32/200-5.5/2W WOS-GB3	380V	31	50	5.5	GB3	2930	DN50×DN32
Atmos GIGA-NX 32/200-7.5/2W WOS-GB2	380V	31	50	7.5	GB2	2940	DN50×DN32
Atmos GIGA-NX 32/200-7.5/2W WOS-GB3	380V	31	50	7.5	GB3	2930	DN50×DN32
Atmos GIGA-NX 32/250-0.55/4W WOS-GB2	380V	20.6	23	0.55	GB2	1370	DN50×DN32
Atmos GIGA-NX 32/250-0.55/4W WOS-GB3	380V	20.6	23	0.55	CL2	1370	DN50×DN32
Atmos GIGA-NX 32/250-0.75/4W WOS-GB2	380V	20.6	23	0.75	GB2	1430	DN50×DN32
Atmos GIGA-NX 32/250-0.75/4W WOS-GB3	380V	20.6	23	0.75	CL2	1430	DN50×DN32
Atmos GIGA-NX 32/250-1.1/4W WOS-GB2	380V	20.6	23	1.1	-	1445	DN50×DN32
Atmos GIGA-NX 32/250-1.1/4W WOS-GB3	380V	20.6	23	1.1	CL2	1440	DN50×DN32
Atmos GIGA-NX 32/250-1.5/4W WOS-GB2	380V	20.6	23	1.5	GB2	1445	DN50×DN32
Atmos GIGA-NX 32/250-1.5/4W WOS-GB3	380V	20.6	23	1.5	CL2	1440	DN50×DN32
Atmos GIGA-NX 32/250-2.2/4W WOS-GB2	380V	20.6	23	2.2	GB2	1460	DN50×DN32
Atmos GIGA-NX 32/250-2.2/4W WOS-GB3	380V	20.6	23	2.2	CL2	1450	DN50×DN32
Atmos GIGA-NX 32/250-3/4W WOS-GB2	380V	20.6	23	3	GB2	1460	DN50×DN32
Atmos GIGA-NX 32/250-3/4W WOS-GB3	380V	20.6	23	3	CL2	1450	DN50×DN32
Atmos GIGA-NX 32/250-5.5/2W WOS-GB2	380V	40.3	88	5.5	GB2	2940	DN50×DN32
Atmos GIGA-NX 32/250-5.5/2W WOS-GB3	380V	40.3	88	5.5	GB3	2930	DN50×DN32
Atmos GIGA-NX 32/250-7.5/2W WOS-GB2	380V	40.3	88	7.5	GB2	2940	DN50×DN32
Atmos GIGA-NX 32/250-7.5/2W WOS-GB3	380V	40.3	88	7.5	GB3	2930	DN50×DN32
Atmos GIGA-NX 32/250-11/2W WOS-GB2	380V	40.3	88	11	GB2	2960	DN50×DN32
Atmos GIGA-NX 32/250-11/2W WOS-GB3	380V	40.3	88	11	GB3	2945	DN50×DN32
Atmos GIGA-NX 32/250-15/2W WOS-GB2	380V	40.3	88	15	GB2	2960	DN50×DN32
Atmos GIGA-NX 32/250-15/2W WOS-GB2	380V	40.3	88	15	GB3	2945	DN50×DN32
Atmos GIGA-NX 32/250-18.5/2W WOS-GB2	380V	40.3	88	18.5	GB2	2960	DN50×DN32
Atmos GIGA-NX 32/250-18.5/2W WOS-GB3	380V	40.3	88	18.5	GB3	2945	DN50×DN32
Atmos GIGA-NX 40/125-0.37/4W WOS-GB3	380V	27.5	6.3	0.37	CL2	1350	DN65×DN40
Atmos GIGA-NX 40/125-0.55/4W WOS-GB2	380V	27.5	6.3	0.55	GB2	1370	DN65×DN40
Atmos GIGA-NX 40/125-0.55/4W WOS-GB3	380V	27.5	6.3	0.55	CL2	1370	DN65×DN40
Atmos GIGA-NX 40/125-0.75/4W WOS-GB2	380V	27.5	6.3	0.75	GB2	1430	DN65×DN40
Atmos GIGA-NX 40/125-0.75/4W WOS-GB3	380V	27.5	6.3	0.75	CL2	1430	DN65×DN40
Atmos GIGA-NX 40/125-2.2/2W WOS-GB2	380V	56	26	2.2	GB2	2910	DN65×DN40
Atmos GIGA-NX 40/125-2.2/2W WOS-GB3	380V	56	26	2.2	GB3	2870	DN65×DN40
Atmos GIGA-NX 40/125-3/2W WOS-GB2	380V	56	26	3	GB2	2920	DN65×DN40
Atmos GIGA-NX 40/125-3/2W WOS-GB3	380V	56	26	3	GB3	2890	DN65×DN40
Atmos GIGA-NX 40/125-4/2W WOS-GB2	380V	56	26	4	GB2	2920	DN65×DN40
Atmos GIGA-NX 40/125-4/2W WOS-GB3	380V	56	26	4	GB3	2900	DN65×DN40
Atmos GIGA-NX 40/125-5.5/2W WOS-GB2	380V	56	26	5.5	GB2	2940	DN65×DN40
Atmos GIGA-NX 40/125-5.5/2W WOS-GB3	380V	56	26	5.5	GB3	2930	DN65×DN40
Atmos GIGA-NX 40/160-0.37/4W WOS-GB3	380V	27	9.2	0.37	CL2	1350	DN65×DN40
Atmos GIGA-NX 40/160-0.55/4W WOS-GB2	380V	27	9.2	0.55	GB2	1370	DN65×DN40
Atmos GIGA-NX 40/160-0.55/4W WOS-GB3	380V	27	9.2	0.55	CL2	1370	DN65×DN40
Atmos GIGA-NX 40/160-0.75/4W WOS-GB2	380V	27	9.2	0.75	GB2	1430	DN65×DN40
Atmos GIGA-NX 40/160-0.75/4W WOS-GB3	380V	27	9.2	0.75	CL2	1430	DN65×DN40
Atmos GIGA-NX 40/160-1.1/4W WOS-GB2	380V	27	9.2	1.1	-	1445	DN65×DN40
Atmos GIGA-NX 40/160-1.1/4W WOS-GB3	380V	27	9.2	1.1	CL2	1440	DN65×DN40
Atmos GIGA-NX 40/160-3/2W WOS-GB2	380V	56	39	3	GB2	2920	DN65×DN40
Atmos GIGA-NX 40/160-3/2W WOS-GB3	380V	56	39	3	GB3	2890	DN65×DN40
Atmos GIGA-NX 40/160-4/2W WOS-GB2	380V	56	39	4	GB2	2920	DN65×DN40
Atmos GIGA-NX 40/160-4/2W WOS-GB3	380V	56	39	4	GB3	2900	DN65×DN40
Atmos GIGA-NX 40/160-5.5/2W WOS-GB2	380V	56	39	5.5	GB2	2940	DN65×DN40
Atmos GIGA-NX 40/160-5.5/2W WOS-GB3	380V	56	39	5.5	GB3	2930	DN65×DN40
Atmos GIGA-NX 40/160-7.5/2W WOS-GB2	380V	56	39	7.5	GB2	2940	DN65×DN40
Atmos GIGA-NX 40/160-7.5/2W WOS-GB3	380V	56	39	7.5	GB3	2930	DN65×DN40
Atmos GIGA-NX 40/160-11/2W WOS-GB2	380V	56	39	11	GB2	2960	DN65×DN40
Atmos GIGA-NX 40/160-11/2W WOS-GB3	380V	56	39	11	GB3	2945	DN65×DN40
Atmos GIGA-NX 40/200-0,37/4W WOS-GB3	380V	28.7	15	0.37	CL2	1350	DN65×DN40
Atmos GIGA-NX 40/200-0,55/4W WOS-GB2	380V	28.7	15	0.55	GB2	1370	DN65×DN40
Atmos GIGA-NX 40/200-0,55/4W WOS-GB3	380V	28.7	15	0.55	CL2	1370	DN65×DN40
Atmos GIGA-NX 40/200-0,75/4W WOS-GB2	380V	28.7	15	0.75	GB2	1430	DN65×DN40
Atmos GIGA-NX 40/200-0,75/4W WOS-GB3	380V	28.7	15	0.75	CL2	1445	DN65×DN40
Atmos GIGA-NX 40/200-1,1/4W WOS-GB2	380V	28.7	15	1.1	-	1445	DN65×DN40
Atmos GIGA-NX 40/200-1,1/4W WOS-GB3	380V	28.7	15	1.1	CL2	1440	DN65×DN40
Atmos GIGA-NX 40/200-1,5/4W WOS-GB2	380V	28.7	15	1.5	GB2	1445	DN65×DN40
Atmos GIGA-NX 40/200-1,5/4W WOS-GB3	380V	28.7	15	1.5	CL2	1440	DN65×DN40
Atmos GIGA-NX 40/200-2,2/4W WOS-GB2	380V	28.7	15	2.2	GB2	1460	DN65×DN40
Atmos GIGA-NX 40/200-2,2/4W WOS-GB3	380V	28.7	15	2.2	CL2	1450	DN65×DN40
Atmos GIGA-NX 40/200-5,5/2W WOS-GB2	380V	57	60	5.5	GB2	2940	DN65×DN40
Atmos GIGA-NX 40/200-5,5/2W WOS-GB3	380V	57	60	5.5	GB3	2930	DN65×DN40
Atmos GIGA-NX 40/200-7,5/2W WOS-GB2	380V	57	60	7.5	GB2	2940	DN65×DN40
Atmos GIGA-NX 40/200-7,5/2W WOS-GB3	380V	57	60	7.5	GB3	2930	DN65×DN40
Atmos GIGA-NX 40/200-11/2W WOS-GB2	380V	57	60	11	GB2	2960	DN65×DN40
Atmos GIGA-NX 40/200-11/2W WOS-GB3	380V	57	60	11	GB3	2945	DN65×DN40
Atmos GIGA-NX 40/200-15/2W WOS-GB2	380V	57	60	15	GB2	2960	DN65×DN40
Atmos GIGA-NX 40/200-15/2W WOS-GB3	380V	57	60	15	GB3	2945	DN65×DN40
Atmos GIGA-NX 40/200-18.5/2W WOS-GB2	380V	57	60	18.5	GB2	2960	DN65×DN40
Atmos GIGA-NX 40/200-18.5/2W WOS-GB3	380V	57	60	18.5	GB3	2945	DN65×DN40
Atmos GIGA-NX 40/200-22/2W WOS-GB2	380V	57	60	22	GB2	2960	DN65×DN40
Atmos GIGA-NX 40/200-22/2W WOS-GB3	380V	57	60	22	GB3	2955	DN65×DN40
Atmos GIGA-NX 40/250-1.1/4W WOS-GB2	380V	435	134	132	GB2	2980	DN125×DN100
Atmos GIGA-NX 40/250-1.1/4W WOS-GB3	380V	435	134	132	GB3	2975	DN125×DN100
Atmos GIGA-NX 40/250-1.5/4W WOS-GB2	380V	227	35.5	15	GB2	1475	DN125×DN100
Atmos GIGA-NX 40/250-1.5/4W WOS-GB3	380V	227	35.5	15	CL2	1465	DN125×DN100
Atmos GIGA-NX 40/250-2.2/4W WOS-GB2	380V	227	35.5	22	GB2	1480	DN125×DN100
Atmos GIGA-NX 40/250-2.2/4W WOS-GB3	380V	227	35.5	22	CL2	1470	DN125×DN100
Atmos GIGA-NX 40/250-3/4W WOS-GB2	380V	435	134	90	GB2	2980	DN125×DN100
Atmos GIGA-NX 40/250-3/4W WOS-GB3	380V	435	134	90	GB3	2975	DN125×DN100
Atmos GIGA-NX 40/250-11/2W WOS-GB2	380V	435	134	160	GB2	2980	DN125×DN100
Atmos GIGA-NX 40/250-11/2W WOS-GB3	380V	435	134	160	GB3	2975	DN125×DN100
Atmos GIGA-NX 40/250-15/2W WOS-GB2	380V	227	35.5	18.5	GB2	1480	DN125×DN100
Atmos GIGA-NX 40/250-15/2W WOS-GB3	380V	227	35.5	18.5	CL2	1470	DN125×DN100
Atmos GIGA-NX 40/250-18.5/2W WOS-GB2	380V	435	134	200	GB2	2980	DN125×DN100
Atmos GIGA-NX 40/250-18.5/2W WOS-GB3	380V	435	134	200	GB3	2980	DN125×DN100
Atmos GIGA-NX 40/250-22/2W WOS-GB2	380V	227	35.5	30	GB2	1480	DN125×DN100
Atmos GIGA-NX 40/250-22/2W WOS-GB3	380V	227	35.5	30	CL2	1475	DN125×DN100
Atmos GIGA-NX 40/250-30/2W WOS-GB2	380V	500	58	110	GB2	1490	DN125×DN100
Atmos GIGA-NX 40/250-30/2W WOS-GB3	380V	500	58	110	CL2	1485	DN125×DN100
Atmos GIGA-NX 40/315-2.2/4W WOS-GB2	380V	33.5	39	2.2	GB2	1460	DN65×DN40
Atmos GIGA-NX 40/315-2.2/4W WOS-GB3	380V	33.5	39	2.2	CL2	1450	DN65×DN40
Atmos GIGA-NX 40/315-3/4W WOS-GB2	380V	33.5	39	3	GB2	1460	DN65×DN40
Atmos GIGA-NX 40/315-3/4W WOS-GB3	380V	33.5	39	3	CL2	1450	DN65×DN40
Atmos GIGA-NX 40/315-4/4W WOS-GB2	380V	33.5	39	4	GB2	1460	DN65×DN40
Atmos GIGA-NX 40/315-4/4W WOS-GB3	380V	33.5	39	4	CL2	1450	DN65×DN40
Atmos GIGA-NX 40/315-5.5/4W WOS-GB2	380V	33.5	39	5.5	GB2	1470	DN65×DN40
Atmos GIGA-NX 40/315-5.5/4W WOS-GB3	380V	33.5	39	5.5	CL2	1460	DN65×DN40
Atmos GIGA-NX 40/315-7.5/4W WOS-GB2	380V	33.5	39	7.5	GB2	1470	DN65×DN40
Atmos GIGA-NX 40/315-7.5/4W WOS-GB3	380V	33.5	39	7.5	CL2	1460	DN65×DN40
Atmos GIGA-NX 40/315-22/2W WOS-GB2	380V	66	152	22	GB2	2960	DN65×DN40
Atmos GIGA-NX 40/315-22/2W WOS-GB3	380V	65.5	152	22	GB3	2955	DN65×DN40
Atmos GIGA-NX 40/315-30/2W WOS-GB2	380V	65.5	152	30	GB2	2970	DN65×DN40
Atmos GIGA-NX 40/315-30/2W WOS-GB3	380V	65.5	152	30	GB3	2960	DN65×DN40
Atmos GIGA-NX 40/315-37/2W WOS-GB2	380V	65.5	152	37	GB2	2970	DN65×DN40
Atmos GIGA-NX 40/315-37/2W WOS-GB3	380V	65.5	152	37	GB3	2960	DN65×DN40
Atmos GIGA-NX 40/315-45/2W-GB2	380V	65.5	152	45	GB2	2970	DN65×DN40
Atmos GIGA-NX 40/315-45/2W-GB3	380V	65.5	152	45	GB3	2965	DN65×DN40
Atmos GIGA-NX 40/315-55/2W-GB2	380V	65.5	152	55	GB2	2980	DN65×DN40
Atmos GIGA-NX 40/315-55/2W-GB3	380V	65.5	152	55	GB3	2970	DN65×DN40
Atmos GIGA-NX 50/125-0.37/4W WOS-GB3	380V	44.5	5.9	0.37	CL2	1350	DN80×DN50
Atmos GIGA-NX 50/125-0.55/4W WOS-GB2	380V	44.5	5.9	0.55	GB2	1370	DN80×DN50
Atmos GIGA-NX 50/125-0.55/4W WOS-GB3	380V	44.5	5.9	0.55	CL2	1370	DN80×DN50
Atmos GIGA-NX 50/125-0.75/4W WOS-GB2	380V	44.5	5.9	0.75	GB2	1430	DN80×DN50
Atmos GIGA-NX 50/125-0.75/4W WOS-GB3	380V	44.5	5.9	0.75	CL2	1430	DN80×DN50
Atmos GIGA-NX 50/125-1.1/4W WOS-GB2	380V	44.5	5.9	1.1	-	1445	DN80×DN50
Atmos GIGA-NX 50/125-1.1/4W WOS-GB3	380V	44.5	5.9	1.1	CL2	1440	DN80×DN50
Atmos GIGA-NX 50/125-3/2W WOS-GB2	380V	88	23.7	3	GB2	2920	DN80×DN50
Atmos GIGA-NX 50/125-3/2W WOS-GB3	380V	88	23.7	3	GB3	2890	DN80×DN50
Atmos GIGA-NX 50/125-4/2W WOS-GB2	380V	88	23.7	4	GB2	2900	DN80×DN50
Atmos GIGA-NX 50/125-4/2W WOS-GB3	380V	88	23.7	4	GB3	2900	DN80×DN50
Atmos GIGA-NX 50/125-5.5/2W WOS-GB2	380V	88	23.7	5.5	GB2	2940	DN80×DN50
Atmos GIGA-NX 50/125-5.5/2W WOS-GB3	380V	88	23.7	5.5	GB3	2930	DN80×DN50
Atmos GIGA-NX 50/125-7.5/2W WOS-GB2	380V	88	23.7	7.5	GB2	2940	DN80×DN50
Atmos GIGA-NX 50/125-7.5/2W WOS-GB3	380V	88	23.7	7.5	GB3	2930	DN80×DN50
Atmos GIGA-NX 50/160-0.55/4W WOS-GB2	380V	39.5	9.6	0.55	GB2	1370	DN80×DN50
Atmos GIGA-NX 50/160-0.55/4W WOS-GB3	380V	39.5	9.6	0.55	CL2	1370	DN80×DN50
Atmos GIGA-NX 50/160-0.75/4W WOS-GB2	380V	39.5	9.6	0.75	GB2	1430	DN80×DN50
Atmos GIGA-NX 50/160-0.75/4W WOS-GB3	380V	39.5	9.6	0.75	CL2	1430	DN80×DN50
Atmos GIGA-NX 50/160-1.1/4W WOS-GB2	380V	39.5	9.6	1.1	-	1445	DN80×DN50
Atmos GIGA-NX 50/160-1.1/4W WOS-GB3	380V	39.5	9.6	1.1	CL2	1440	DN80×DN50
Atmos GIGA-NX 50/160-1.5/4W WOS-GB2	380V	39.5	9.6	1.5	GB2	1445	DN80×DN50
Atmos GIGA-NX 50/160-1.5/4W WOS-GB3	380V	39.5	9.6	1.5	CL2	1440	DN80×DN50
Atmos GIGA-NX 50/160-4/2W WOS-GB2	380V	78	37.5	4	GB2	2920	DN80×DN50
Atmos GIGA-NX 50/160-4/2W WOS-GB3	380V	78	37.5	4	GB3	2900	DN80×DN50
Atmos GIGA-NX 50/160-5.5/2W WOS-GB2	380V	78	37.5	5.5	GB2	2940	DN80×DN50
Atmos GIGA-NX 50/160-5.5/2W WOS-GB3	380V	78	37.5	5.5	GB3	2930	DN80×DN50
Atmos GIGA-NX 50/160-7.5/2W WOS-GB2	380V	78	37.5	7.5	GB2	2940	DN80×DN50
Atmos GIGA-NX 50/160-7.5/2W WOS-GB3	380V	78	37.5	7.5	GB3	2930	DN80×DN50
Atmos GIGA-NX 50/160-11/2W WOS-GB2	380V	78	37.5	11	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/160-11/2W WOS-GB3	380V	78	37.5	11	GB3	2945	DN80×DN50
Atmos GIGA-NX 50/200-1.1/4W WOS-GB2	380V	45	15	1.1	-	1445	DN80×DN50
Atmos GIGA-NX 50/200-1.1/4W WOS-GB3	380V	45	15	1.1	CL2	1440	DN80×DN50
Atmos GIGA-NX 50/200-1.5/4W WOS-GB2	380V	45	15	1.5	GB2	1445	DN80×DN50
Atmos GIGA-NX 50/200-1.5/4W WOS-GB3	380V	45	15	1.5	CL2	1440	DN80×DN50
Atmos GIGA-NX 50/200-2.2/4W WOS-GB2	380V	45	15	5.5	GB2	1470	DN80×DN50
Atmos GIGA-NX 50/200-2.2/4W WOS-GB3	380V	45	15	2.2	CL2	1450	DN80×DN50
Atmos GIGA-NX 50/200-3/4W WOS-GB2	380V	45	15	3	GB2	1460	DN80×DN50
Atmos GIGA-NX 50/200-3/4W WOS-GB3	380V	45	15	3	CL2	1450	DN80×DN50
Atmos GIGA-NX 50/200-7.5/2W WOS-GB2	380V	91	61	7.5	GB2	2940	DN80×DN50
Atmos GIGA-NX 50/200-7.5/2W WOS-GB3	380V	91	61	7.5	GB3	2930	DN80×DN50
Atmos GIGA-NX 50/200-11/2W WOS-GB2	380V	91	61	11	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/200-11/2W WOS-GB3	380V	91	61	11	GB3	2945	DN80×DN50
Atmos GIGA-NX 50/200-15/2W WOS-GB2	380V	91	61	15	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/200-15/2W WOS-GB3	380V	91	61	15	GB3	2945	DN80×DN50
Atmos GIGA-NX 50/200-18.5/2W WOS-GB2	380V	91	61	18.5	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/200-18.5/2W WOS-GB3	380V	91	61	18.5	GB3	2945	DN80×DN50
Atmos GIGA-NX 50/200-22/2W WOS-GB2	380V	91	61	22	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/200-22/2W WOS-GB3	380V	91	61	22	GB3	2955	DN80×DN50
Atmos GIGA-NX 50/250-1,5/4W WOS-GB2	380V	50	21	1.5	GB2	1445	DN80×DN50
Atmos GIGA-NX 50/250-1,5/4W WOS-GB3	380V	50	21	1.5	CL2	1440	DN80×DN50
Atmos GIGA-NX 50/250-2,2/4W WOS-GB2	380V	50	21	2.2	GB2	1460	DN80×DN50
Atmos GIGA-NX 50/250-2,2/4W WOS-GB3	380V	50	21	2.2	CL2	1450	DN80×DN50
Atmos GIGA-NX 50/250-3/4W WOS-GB2	380V	50	21	3	GB2	1460	DN80×DN50
Atmos GIGA-NX 50/250-3/4W WOS-GB3	380V	50	21	3	CL2	1450	DN80×DN50
Atmos GIGA-NX 50/250-4/4W WOS-GB2	380V	50	21	4	GB2	1460	DN80×DN50
Atmos GIGA-NX 50/250-4/4W WOS-GB3	380V	50	21	4	CL2	1450	DN80×DN50
Atmos GIGA-NX 50/250-5,5/4W WOS-GB2	380V	50	21	5.5	GB2	1470	DN80×DN50
Atmos GIGA-NX 50/250-5,5/4W WOS-GB3	380V	50	21	5.5	CL2	1460	DN80×DN50
Atmos GIGA-NX 50/250-11/2W WOS-GB2	380V	100	84	11	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/250-11/2W WOS-GB3	380V	100	84	11	GB3	2945	DN80×DN50
Atmos GIGA-NX 50/250-15/2W WOS-GB2	380V	100	84	15	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/250-15/2W WOS-GB3	380V	100	84	15	GB3	2945	DN80×DN50
Atmos GIGA-NX 50/250-18,5/2W WOS-GB2	380V	100	84	18.5	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/250-18,5/2W WOS-GB3	380V	100	84	18.5	GB3	2960	DN80×DN50
Atmos GIGA-NX 50/250-22/2W WOS-GB2	380V	100	84	22	GB2	2960	DN80×DN50
Atmos GIGA-NX 50/250-22/2W WOS-GB3	380V	100	84	22	GB3	2955	DN80×DN50
Atmos GIGA-NX 50/250-30/2W WOS-GB2	380V	100	84	30	GB2	2970	DN80×DN50
Atmos GIGA-NX 50/250-30/2W WOS-GB3	380V	100	84	30	GB3	2960	DN80×DN50
Atmos GIGA-NX 50/250-37/2W WOS-GB2	380V	100	84	37	GB2	2970	DN80×DN50
Atmos GIGA-NX 50/250-37/2W WOS-GB3	380V	100	84	37	GB3	2960	DN80×DN50
Atmos GIGA-NX 50/315-3/4W WOS-GB2	380V	500	58	55	GB2	1485	DN200×DN150
Atmos GIGA-NX 50/315-3/4W WOS-GB3	380V	500	58	55	CL2	1485	DN200×DN150
Atmos GIGA-NX 50/315-4/4W WOS-GB2	380V	33	20.6	1.1	-	1445	DN65×DN40
Atmos GIGA-NX 50/315-4/4W WOS-GB3	380V	33	20.6	1.1	CL2	1440	DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB2	380V	33	20.6	1.5	GB2	1445	DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB2	380V	33	20.6	5.5	GB2	1445	DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB3	380V	33	20.6	1.5	CL2	1440	DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB3	380V	33	20.6	5.5	CL2	1440	DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB2	380V	69	88	11	GB2	2960	DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB2	380V	69	88	7.5	GB2	2960	DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB3	380V	69	88	11	GB3	2945	DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB3	380V	69	88	7.5	CL2	2945	DN65×DN40
Atmos GIGA-NX 50/315-11/4W WOS-GB2	380V	500	58	45	GB2	1485	DN200×DN150
Atmos GIGA-NX 50/315-11/4W WOS-GB3	380V	500	58	45	CL2	1485	DN200×DN150
Atmos GIGA-NX 50/315-30/2W WOS-GB2	380V	500	58	75	GB2	1485	DN200×DN150
Atmos GIGA-NX 50/315-30/2W WOS-GB3	380V	500	58	75	CL2	1485	DN200×DN150
Atmos GIGA-NX 50/315-37/2W WOS-GB2	380V	500	58	90	GB2	1485	DN200×DN150
Atmos GIGA-NX 50/315-37/2W WOS-GB3	380V	500	58	90	CL2	1485	DN200×DN150
Atmos GIGA-NX 50/315-55/2W-GB2	380V	113	144	55	GB2	2980	DN80×DN50
Atmos GIGA-NX 50/315-55/2W-GB3	380V	113	144	55	GB3	2970	DN80×DN50
Atmos GIGA-NX 50/315-75/2W-GB2	380V	113	144	75	GB2	2980	DN80×DN50
Atmos GIGA-NX 50/315-75/2W-GB3	380V	113	144	75	GB3	2975	DN80×DN50
Atmos GIGA-NX 65/125-0.55/4W WOS-GB2	380V	59	4.9	0.55	GB2	1370	DN100×DN65
Atmos GIGA-NX 65/125-0.55/4W WOS-GB3	380V	59	4.9	0.55	CL2	1370	DN100×DN65
Atmos GIGA-NX 65/125-0.75/4W WOS-GB2	380V	59	4.9	0.75	GB2	1430	DN100×DN65
Atmos GIGA-NX 65/125-0.75/4W WOS-GB3	380V	59	4.9	0.75	CL2	1430	DN100×DN65
Atmos GIGA-NX 65/125-1.1/4W WOS-GB2	380V	59	4.8	1.1	-	1445	DN100×DN65
Atmos GIGA-NX 65/125-1.1/4W WOS-GB3	380V	59	4.8	1.1	CL2	1440	DN100×DN65
Atmos GIGA-NX 65/125-4/2W WOS-GB2	380V	124	22.3	4	GB2	2920	DN100×DN65
Atmos GIGA-NX 65/125-4/2W WOS-GB3	380V	124	22.3	4	GB3	2900	DN100×DN65
Atmos GIGA-NX 65/125-5.5/2W WOS-GB2	380V	124	22.3	5.5	GB2	2940	DN100×DN65
Atmos GIGA-NX 65/125-5.5/2W WOS-GB3	380V	124	22.3	5.5	GB3	2930	DN100×DN65
Atmos GIGA-NX 65/125-7.5/2W WOS-GB2	380V	124	22.3	7.5	GB2	2940	DN100×DN65
Atmos GIGA-NX 65/125-7.5/2W WOS-GB3	380V	124	22.3	7.5	GB3	2930	DN100×DN65
Atmos GIGA-NX 65/125-11/2W WOS-GB2	380V	124	22.3	11	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/125-11/2W WOS-GB3	380V	124	22.3	11	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/160-0,55/4W WOS-GB2	380V	61	9.7	0.55	GB2	1370	DN100×DN65
Atmos GIGA-NX 65/160-0,55/4W WOS-GB3	380V	61	9.7	0.55	CL2	1370	DN100×DN65
Atmos GIGA-NX 65/160-0,75/4W WOS-GB2	380V	61	9.7	0.75	GB2	1430	DN100×DN65
Atmos GIGA-NX 65/160-0,75/4W WOS-GB3	380V	61	9.7	0.75	CL2	1430	DN100×DN65
Atmos GIGA-NX 65/160-1,1/4W WOS-GB2	380V	61	9.7	1.1	-	1445	DN100×DN65
Atmos GIGA-NX 65/160-1,1/4W WOS-GB3	380V	61	9.7	1.1	CL2	1440	DN100×DN65
Atmos GIGA-NX 65/160-1,5/4W WOS-GB2	380V	61	9.7	1.5	GB2	1445	DN100×DN65
Atmos GIGA-NX 65/160-1,5/4W WOS-GB3	380V	61	9.7	1.5	CL2	1440	DN100×DN65
Atmos GIGA-NX 65/160-2,2/4W WOS-GB2	380V	61	9.7	2.2	GB2	1460	DN100×DN65
Atmos GIGA-NX 65/160-2,2/4W WOS-GB3	380V	61	9.7	2.2	CL2	1450	DN100×DN65
Atmos GIGA-NX 65/160-5,5/2W WOS-GB3	380V	123	40	5.5	GB2	2940	DN100×DN65
Atmos GIGA-NX 65/160-5,5/2W WOS-GB3	380V	123	40	5.5	GB3	2930	DN100×DN65
Atmos GIGA-NX 65/160-7,5/2W WOS-GB2	380V	123	40	7.5	GB2	2940	DN100×DN65
Atmos GIGA-NX 65/160-7,5/2W WOS-GB3	380V	123	40	7.5	GB3	2930	DN100×DN65
Atmos GIGA-NX 65/160-11/2W WOS-GB2	380V	123	40	11	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/160-11/2W WOS-GB3	380V	123	40	11	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/160-15/2W WOS-GB2	380V	123	40	15	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/160-15/2W WOS-GB3	380V	123	40	15	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/160-18,5/2W WOS-GB2	380V	123	40	18.5	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/160-18,5/2W WOS-GB3	380V	123	40	18.5	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/200-1.5/4W WOS-GB2	380V	71	15	1.5	GB2	1445	DN100×DN65
Atmos GIGA-NX 65/200-1.5/4W WOS-GB3	380V	71	15	1.5	CL2	1440	DN100×DN65
Atmos GIGA-NX 65/200-2.2/4W WOS-GB2	380V	71	15	2.2	GB2	1460	DN100×DN65
Atmos GIGA-NX 65/200-2.2/4W WOS-GB3	380V	71	15	2.2	CL2	1450	DN100×DN65
Atmos GIGA-NX 65/200-3/4W WOS-GB2	380V	71	15	3	GB2	1460	DN100×DN65
Atmos GIGA-NX 65/200-3/4W WOS-GB3	380V	71	15	-	-	1460	DN100×DN65
Atmos GIGA-NX 65/200-4/4W WOS-GB2	380V	71	15	4	GB2	1460	DN100×DN65
Atmos GIGA-NX 65/200-4/4W WOS-GB3	380V	71	15	4	CL2	1450	DN100×DN65
Atmos GIGA-NX 65/200-11/2W WOS-GB2	380V	150	66	11	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/200-11/2W WOS-GB3	380V	150	66	11	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/200-15/2W WOS-GB2	380V	150	66	15	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/200-15/2W WOS-GB3	380V	150	66	15	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/200-18.5/2W WOS-GB2	380V	150	66	18.5	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/200-18.5/2W WOS-GB3	380V	150	66	18.5	GB3	2945	DN100×DN65
Atmos GIGA-NX 65/200-22/2W WOS-GB2	380V	150	66	22	GB2	2960	DN100×DN65
Atmos GIGA-NX 65/200-22/2W WOS-GB3	380V	150	66	22	GB3	2955	DN100×DN65
Atmos GIGA-NX 65/200-30/2W WOS-GB2	380V	150	66	30	GB2	2970	DN100×DN65
Atmos GIGA-NX 65/200-30/2W WOS-GB3	380V	150	66	30	GB3	2960	DN100×DN65
Atmos GIGA-NX 65/200-37/2W WOS-GB2	380V	150	66	37	GB2	2970	DN100×DN65
Atmos GIGA-NX 65/200-37/2W WOS-GB3	380V	150	66	37	GB3	2960	DN100×DN65
Atmos GIGA-NX 65/250-2.2/4W WOS-GB2	380V	69	88	15	GB2	2960	DN65×DN40
Atmos GIGA-NX 65/250-2.2/4W WOS-GB2	380V	69	88	15	GB2	2960	DN65×DN40
Atmos GIGA-NX 65/250-2.2/4W WOS-GB3	380V	69	88	15	GB3	2945	DN65×DN40
Atmos GIGA-NX 65/250-2.2/4W WOS-GB3	380V	69	88	15	GB3	2945	DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB2	380V	33	20.5	2.2	GB2	1460	DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB2	380V	33	20.5	2.2	GB2	1460	DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB3	380V	33	20.5	2.2	CL2	1450	DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB3	380V	33	20.5	2.2	CL2	1450	DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB2	380V	69	88	30	GB2	2970	DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB2	380V	69	88	30	GB2	2970	DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB3	380V	69	88	30	GB3	2960	DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB3	380V	69	88	30	GB3	2960	DN65×DN40
Atmos GIGA-NX 65/250-5.5/4W WOS-GB2	380V	58	38	11	GB2	1475	DN80×DN50
Atmos GIGA-NX 65/250-5.5/4W WOS-GB2	380V	58	38	11	GB2	1475	DN80×DN50
Atmos GIGA-NX 65/250-5.5/4W WOS-GB3	380V	58	38	11	CL2	1465	DN80×DN50
Atmos GIGA-NX 65/250-5.5/4W WOS-GB3	380V	58	38	11	CL2	1465	DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB2	380V	58	38	7.5	GB2	1460	DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB2	380V	58	38	3	GB2	1460	DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB3	380V	58	38	3	CL2	1450	DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB3	380V	58	38	3	CL2	1450	DN80×DN50
Atmos GIGA-NX 65/250-22/2W WOS-GB2	380V	69	88	18.5	GB2	2960	DN65×DN40
Atmos GIGA-NX 65/250-22/2W WOS-GB2	380V	69	88	18.5	GB2	2960	DN65×DN40
Atmos GIGA-NX 65/250-22/2W WOS-GB3	380V	69	88	18.5	GB3	2945	DN65×DN40
Atmos GIGA-NX 65/250-22/2W WOS-GB3	380V	69	88	18.5	GB3	2945	DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB2	380V	69	88	22	GB2	2960	DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB2	380V	69	88	22	GB2	2960	DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB3	380V	69	88	22	GB3	2955	DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB3	380V	69	88	22	GB3	2955	DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB2	380V	33	20.7	3	GB2	1460	DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB2	380V	33	20.7	3	GB2	1460	DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB3	380V	33	20.7	3	CL2	1450	DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB3	380V	33	20.7	3	CL2	1450	DN65×DN40
Atmos GIGA-NX 65/250-45/2W-GB2	380V	155	88	45	GB2	2970	DN100×DN65
Atmos GIGA-NX 65/250-45/2W-GB3	380V	155	88	45	GB3	2965	DN100×DN65
Atmos GIGA-NX 65/250-55/2W-GB2	380V	155	88	55	GB2	2980	DN100×DN65
Atmos GIGA-NX 65/250-55/2W-GB3	380V	155	88	55	GB3	2970	DN100×DN65
Atmos GIGA-NX 65/315-4/4W WOS-GB2	380V	58	38	4	GB2	1460	DN80×DN50
Atmos GIGA-NX 65/315-4/4W WOS-GB2	380V	58	38	4	GB2	1460	DN80×DN50
Atmos GIGA-NX 65/315-4/4W WOS-GB3	380V	58	38	4	CL2	1450	DN80×DN50
Atmos GIGA-NX 65/315-4/4W WOS-GB3	380V	58	38	4	CL2	1450	DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB2	380V	113	145	45	GB2	2970	DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB2	380V	113	145	45	GB2	2970	DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB3	380V	113	145	45	GB3	2965	DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB3	380V	113	145	45	GB3	2965	DN80×DN50
Atmos GIGA-NX 65/315-7.5/4W WOS-GB2	380V	97	37	7.5	GB2	1470	DN100×DN65
Atmos GIGA-NX 65/315-7.5/4W WOS-GB3	380V	97	37	7.5	CL2	1460	DN100×DN65
Atmos GIGA-NX 65/315-11/4W WOS-GB2	380V	113	145	30	GB2	2970	DN80×DN50
Atmos GIGA-NX 65/315-11/4W WOS-GB2	380V	113	145	30	GB2	2970	DN80×DN50
Atmos GIGA-NX 65/315-11/4W WOS-GB3	380V	113	145	30	GB3	2960	DN80×DN50
Atmos GIGA-NX 65/315-11/4W WOS-GB3	380V	113	145	30	GB3	2960	DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB2	380V	113	145	37	GB2	2970	DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB2	380V	113	145	37	GB2	2970	DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB3	380V	113	145	37	GB3	2960	DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB3	380V	113	145	37	GB3	2960	DN80×DN50
Atmos GIGA-NX 65/315-45/2W-GB2	380V	177	141	45	GB2	2970	DN100×DN65
Atmos GIGA-NX 65/315-45/2W-GB3	380V	177	141	45	GB3	2965	DN100×DN65
Atmos GIGA-NX 65/315-55/2W-GB2	380V	177	141	55	GB2	2980	DN100×DN65
Atmos GIGA-NX 65/315-55/2W-GB3	380V	177	141	55	GB3	2970	DN100×DN65
Atmos GIGA-NX 65/315-75/2W-GB2	380V	177	141	75	GB2	2980	DN100×DN65
Atmos GIGA-NX 65/315-75/2W-GB3	380V	177	141	75	GB3	2975	DN100×DN65
Atmos GIGA-NX 65/315-90/2W-GB2	380V	177	141	90	GB2	2980	DN100×DN65
Atmos GIGA-NX 65/315-90/2W-GB3	380V	177	141	90	GB3	2975	DN100×DN65
Atmos GIGA-NX 65/315-110/2W-GB2	380V	177	141	110	GB2	2980	DN100×DN65
Atmos GIGA-NX 65/315-110/2W-GB3	380V	177	141	110	GB2	2975	DN100×DN65
Atmos GIGA-NX 80/160-1.1/4W WOS-GB2	380V	98	8.7	1.1	-	1445	DN125×DN80
Atmos GIGA-NX 80/160-1.1/4W WOS-GB3	380V	98	8.7	1.1	CL2	1440	DN125×DN80
Atmos GIGA-NX 80/160-1.5/4W WOS-GB2	380V	98	8.7	1.5	GB2	1445	DN125×DN80
Atmos GIGA-NX 80/160-1.5/4W WOS-GB3	380V	98	8.7	1.5	CL2	1440	DN125×DN80
Atmos GIGA-NX 80/160-2.2/4W WOS-GB2	380V	98	8.7	2.2	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/160-2.2/4W WOS-GB3	380V	98	8.7	2.2	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/160-3/4W WOS-GB2	380V	98	8.7	3	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/160-3/4W WOS-GB3	380V	98	8.7	3	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/160-11/2W WOS-GB2	380V	200	36	11	GB2	2960	DN125×DN80
Atmos GIGA-NX 80/160-11/2W WOS-GB3	380V	200	36	11	GB2	2945	DN125×DN80
Atmos GIGA-NX 80/160-15/2W WOS-GB2	380V	200	36	15	GB2	2960	DN125×DN80
Atmos GIGA-NX 80/160-15/2W WOS-GB3	380V	200	36	15	GB3	2945	DN125×DN80
Atmos GIGA-NX 80/160-18.5/2W WOS-GB2	380V	200	36	18.5	GB2	2960	DN125×DN80
Atmos GIGA-NX 80/160-18.5/2W WOS-GB3	380V	200	36	18.5	GB3	2945	DN125×DN80
Atmos GIGA-NX 80/160-22/2W WOS-GB2	380V	200	36	22	GB2	2960	DN125×DN80
Atmos GIGA-NX 80/160-22/2W WOS-GB3	380V	200	36	22	GB3	2955	DN125×DN80
Atmos GIGA-NX 80/160-30/2W WOS-GB2	380V	200	36	30	GB3	2970	DN125×DN80
Atmos GIGA-NX 80/160-30/2W WOS-GB3	380V	200	36	30	GB3	2960	DN125×DN80
Atmos GIGA-NX 80/200-2.2/4W WOS-GB2	380V	112	16	2.2	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/200-2.2/4W WOS-GB3	380V	112	16	2.2	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/200-3/4W WOS-GB2	380V	112	16	3	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/200-3/4W WOS-GB3	380V	112	16	3	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/200-4/4W WOS-GB2	380V	112	16	4	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/200-4/4W WOS-GB3	380V	112	16	4	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/200-5.5/4W WOS-GB2	380V	112	16	5.5	GB2	1470	DN125×DN80
Atmos GIGA-NX 80/200-5.5/4W WOS-GB3	380V	112	16	5.5	CL2	1460	DN125×DN80
Atmos GIGA-NX 80/200-7.5/4W WOS-GB2	380V	112	16	7.5	GB2	1470	DN125×DN80
Atmos GIGA-NX 80/200-7.5/4W WOS-GB3	380V	112	16	7.5	CL2	1460	DN125×DN80
Atmos GIGA-NX 80/200-18.5/2W WOS-GB2	380V	225	65	18.5	GB2	2960	DN125×DN80
Atmos GIGA-NX 80/200-18.5/2W WOS-GB3	380V	225	65	18.5	GB3	2945	DN125×DN80
Atmos GIGA-NX 80/200-22/2W WOS-GB2	380V	225	65	22	GB2	2960	DN125×DN80
Atmos GIGA-NX 80/200-22/2W WOS-GB3	380V	225	65	22	GB3	2955	DN125×DN80
Atmos GIGA-NX 80/200-30/2W WOS-GB2	380V	225	65	30	GB2	2970	DN125×DN80
Atmos GIGA-NX 80/200-30/2W WOS-GB3	380V	225	65	30	GB3	2960	DN125×DN80
Atmos GIGA-NX 80/200-37/2W WOS-GB2	380V	225	65	37	GB2	2970	DN125×DN80
Atmos GIGA-NX 80/200-37/2W WOS-GB3	380V	225	65	37	GB3	2960	DN125×DN80
Atmos GIGA-NX 80/200-45/2W-GB2	380V	225	65	45	GB2	2970	DN125×DN80
Atmos GIGA-NX 80/200-45/2W-GB3	380V	225	65	45	GB3	2965	DN125×DN80
Atmos GIGA-NX 80/200-55/2W-GB2	380V	225	65	55	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/200-55/2W-GB3	380V	225	65	55	GB3	2970	DN125×DN80
Atmos GIGA-NX 80/250-3/4W WOS-GB2	380V	118	24.3	3	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/250-3/4W WOS-GB3	380V	118	24.3	3	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/250-4/4W WOS-GB2	380V	118	24.3	4	GB2	1460	DN125×DN80
Atmos GIGA-NX 80/250-4/4W WOS-GB3	380V	118	24.3	4	CL2	1450	DN125×DN80
Atmos GIGA-NX 80/250-5.5/4W WOS-GB2	380V	118	24.3	5.5	GB2	1470	DN125×DN80
Atmos GIGA-NX 80/250-5.5/4W WOS-GB3	380V	118	24.3	5.5	CL2	1460	DN125×DN80
Atmos GIGA-NX 80/250-7.5/4W WOS-GB2	380V	118	24.3	7.5	GB2	1470	DN125×DN80
Atmos GIGA-NX 80/250-7.5/4W WOS-GB3	380V	118	24.3	7.5	CL2	1460	DN125×DN80
Atmos GIGA-NX 80/250-11/4W WOS-GB2	380V	118	24.3	11	GB2	1475	DN125×DN80
Atmos GIGA-NX 80/250-11/4W WOS-GB3	380V	118	24.3	11	CL2	1465	DN125×DN80
Atmos GIGA-NX 80/250-37/2W WOS-GB2	380V	240	100	37	GB2	2970	DN125×DN80
Atmos GIGA-NX 80/250-37/2W WOS-GB3	380V	240	100	37	GB3	2960	DN125×DN80
Atmos GIGA-NX 80/250-45/2W-GB2	380V	240	100	45	GB2	2970	DN125×DN80
Atmos GIGA-NX 80/250-45/2W-GB3	380V	240	100	45	GB3	2965	DN125×DN80
Atmos GIGA-NX 80/250-55/2W-GB2	380V	240	100	55	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/250-55/2W-GB3	380V	240	100	55	GB3	2970	DN125×DN80
Atmos GIGA-NX 80/250-75/2W-GB2	380V	240	100	75	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/250-75/2W-GB3	380V	240	100	75	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/250-90/2W-GB2	380V	240	100	90	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/250-90/2W-GB3	380V	240	100	90	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/315.1-7.5/4W WOS-GB2	380V	140	38	7.5	GB2	1470	DN125×DN80
Atmos GIGA-NX 80/315.1-7.5/4W WOS-GB3	380V	140	38	7.5	CL2	1460	DN125×DN80
Atmos GIGA-NX 80/315.1-11/4W WOS-GB2	380V	140	38	11	GB2	1475	DN125×DN80
Atmos GIGA-NX 80/315.1-11/4W WOS-GB3	380V	140	38	11	CL2	1465	DN125×DN80
Atmos GIGA-NX 80/315.1-15/4W WOS-GB2	380V	140	38	15	GB2	1475	DN125×DN80
Atmos GIGA-NX 80/315.1-15/4W WOS-GB3	380V	140	38	15	CL2	1465	DN125×DN80
Atmos GIGA-NX 80/315.1-18.5/4W WOS-GB2	380V	140	38	18.5	GB2	1480	DN125×DN80
Atmos GIGA-NX 80/315.1-18.5/4W WOS-GB3	380V	140	38	18.5	CL2	1470	DN125×DN80
Atmos GIGA-NX 80/315.1-22/4W WOS-GB2	380V	140	38	22	GB2	1480	DN125×DN80
Atmos GIGA-NX 80/315.1-22/4W WOS-GB3	380V	140	38	22	CL2	1470	DN125×DN80
Atmos GIGA-NX 80/315.1-75/2W-GB2	380V	275	136	75	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/315.1-75/2W-GB3	380V	275	136	75	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/315.1-90/2W-GB2	380V	275	136	90	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/315.1-90/2W-GB3	380V	275	136	90	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/315.1-110/2W-GB2	380V	275	136	110	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/315.1-110/2W-GB3	380V	275	136	110	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/315.1-132/2W-GB2	380V	275	136	132	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/315.1-132/2W-GB3	380V	275	136	132	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/315.1-160/2W-GB2	380V	275	136	160	GB2	2980	DN125×DN80
Atmos GIGA-NX 80/315.1-160/2W-GB3	380V	275	136	160	GB3	2975	DN125×DN80
Atmos GIGA-NX 80/400-15/4W WOS-GB2	380V	165	62	15	GB2	1475	DN125×DN80
Atmos GIGA-NX 80/400-15/4W WOS-GB3	380V	165	62	15	CL2	1465	DN125×DN80
Atmos GIGA-NX 80/400-18,5/4W WOS-GB2	380V	165	62	18.5	GB2	1480	DN125×DN80
Atmos GIGA-NX 80/400-18,5/4W WOS-GB3	380V	165	62	18.5	CL2	1470	DN125×DN80
Atmos GIGA-NX 80/400-22/4W WOS-GB2	380V	165	62	22	GB2	1480	DN125×DN80
Atmos GIGA-NX 80/400-22/4W WOS-GB3	380V	165	62	22	CL2	1470	DN125×DN80
Atmos GIGA-NX 80/400-30/4W WOS-GB2	380V	165	62	30	GB2	1480	DN125×DN80
Atmos GIGA-NX 80/400-30/4W WOS-GB3	380V	165	62	30	CL2	1475	DN125×DN80
Atmos GIGA-NX 80/400-37/4W-GB2	380V	165	62	37	GB2	1485	DN125×DN80
Atmos GIGA-NX 80/400-37/4W-GB3	380V	165	62	37	CL2	1485	DN125×DN80
Atmos GIGA-NX 80/400-45/4W-GB2	380V	165	62	45	GB2	1485	DN125×DN80
Atmos GIGA-NX 80/400-45/4W-GB3	380V	165	62	45	CL2	1485	DN125×DN80
Atmos GIGA-NX 100/160-2.2/4W WOS -GB2	380V	162	6.8	2.2	GB2	1460	DN125×DN100
Atmos GIGA-NX 100/160-2.2/4W WOS -GB3	380V	162	6.8	2.2	CL2	1450	DN125×DN100
Atmos GIGA-NX 100/160-3/4W WOS-GB2	380V	162	6.8	3	GB2	1450	DN125×DN100
Atmos GIGA-NX 100/160-3/4W WOS-GB3	380V	162	6.8	3	CL2	1450	DN125×DN100
Atmos GIGA-NX 100/160-4/4W WOS-GB2	380V	162	6.8	4	GB2	1460	DN125×DN100
Atmos GIGA-NX 100/160-4/4W WOS-GB3	380V	162	6.8	4	CL2	1450	DN125×DN100
Atmos GIGA-NX 100/160-18.5/2W WOS-GB2	380V	330	28	18.5	GB2	2960	DN125×DN100
Atmos GIGA-NX 100/160-18.5/2W WOS-GB3	380V	330	28	18.5	GB3	2945	DN125×DN100
Atmos GIGA-NX 100/160-22/2W WOS-GB2	380V	330	28	22	GB2	2960	DN125×DN100
Atmos GIGA-NX 100/160-22/2W WOS-GB3	380V	330	28	22	GB3	2955	DN125×DN100
Atmos GIGA-NX 100/160-30/2W WOS-GB2	380V	330	28	30	GB2	2970	DN125×DN100
Atmos GIGA-NX 100/160-30/2W WOS-GB3	380V	330	28	30	GB3	2960	DN125×DN100
Atmos GIGA-NX 100/200-3/4W WOS-GB2	380V	170	13	3	GB2	1460	DN125×DN100
Atmos GIGA-NX 100/200-3/4W WOS-GB3	380V	170	13	3	CL2	1450	DN125×DN100
Atmos GIGA-NX 100/200-4/4W WOS-GB2	380V	170	13	4	GB2	1460	DN125×DN100
Atmos GIGA-NX 100/200-4/4W WOS-GB3	380V	170	13	4	CL2	1450	DN125×DN100
Atmos GIGA-NX 100/200-5.5/4W WOS-GB2	380V	370	61	45	GB2	2970	DN125×DN100
Atmos GIGA-NX 100/200-5.5/4W WOS-GB3	380V	370	61	45	GB3	2965	DN125×DN100
Atmos GIGA-NX 100/200-7.5/4W WOS-GB2	380V	170	13	5.5	GB2	1470	DN125×DN100
Atmos GIGA-NX 100/200-7.5/4W WOS-GB3	380V	170	13	5.5	CL2	1460	DN125×DN100
Atmos GIGA-NX 100/200-30/2W WOS-GB2	380V	370	61	30	GB2	2970	DN125×DN100
Atmos GIGA-NX 100/200-30/2W WOS-GB3	380V	370	61	30	GB3	2960	DN125×DN100
Atmos GIGA-NX 100/200-37/2W WOS-GB2	380V	370	61	37	GB2	2970	DN125×DN100
Atmos GIGA-NX 100/200-37/2W WOS-GB3	380V	370	61	37	GB3	2960	DN125×DN100
Atmos GIGA-NX 100/250.1-5,5/4W WOS-GB2	380V	180	24	5.5	GB2	1470	DN125×DN100
Atmos GIGA-NX 100/250.1-5,5/4W WOS-GB3	380V	180	24	5.5	CL2	1460	DN125×DN100
Atmos GIGA-NX 100/250.1-7,5/4W WOS-GB2	380V	180	24	7.5	GB2	1470	DN125×DN100
Atmos GIGA-NX 100/250.1-7,5/4W WOS-GB3	380V	180	24	7.5	CL2	1460	DN125×DN100
Atmos GIGA-NX 100/250.1-11/4W WOS-GB2	380V	180	24.1	11	GB2	1475	DN125×DN100
Atmos GIGA-NX 100/250.1-11/4W WOS-GB3	380V	180	24.1	11	CL2	1465	DN125×DN100
Atmos GIGA-NX 100/250.1-15/4W WOS-GB2	380V	180	24.1	15	GB2	1475	DN125×DN100
Atmos GIGA-NX 100/250.1-15/4W WOS-GB3	380V	180	24.1	15	CL2	1465	DN125×DN100
Atmos GIGA-NX 100/250.1-55/2W-GB2	380V	360	100	55	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/250.1-55/2W-GB3	380V	365	100	55	GB3	2970	DN125×DN100
Atmos GIGA-NX 100/250.1-75/2W-GB2	380V	365	100	75	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/250.1-75/2W-GB3	380V	365	100	75	GB3	2975	DN125×DN100
Atmos GIGA-NX 100/250.1-90/2W-GB2	380V	365	100	90	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/250.1-90/2W-GB3	380V	365	100	90	GB3	2975	DN125×DN100
Atmos GIGA-NX 100/250.1-110/2W-GB2	380V	365	100	110	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/250.1-110/2W-GB3	380V	365	100	110	GB3	2975	DN125×DN100
Atmos GIGA-NX 100/250.1-132/2W-GB2	380V	365	100	132	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/250.1-132/2W-GB3	380V	365	100	132	GB3	2975	DN125×DN100
Atmos GIGA-NX 100/315.1-11/4W WOS-GB2	380V	370	61	55	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/315.1-11/4W WOS-GB3	380V	370	61	55	GB3	2970	DN125×DN100
Atmos GIGA-NX 100/315.1-15/4W WOS-GB2	380V	168	13.1	7.5	GB2	1470	DN125×DN100
Atmos GIGA-NX 100/315.1-15/4W WOS-GB3	380V	168	13.1	7.5	CL2	1460	DN125×DN100
Atmos GIGA-NX 100/315.1-18.5/4W WOS-GB2	380V	370	61	75	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/315.1-18.5/4W WOS-GB3	380V	370	61	75	GB3	2975	DN125×DN100
Atmos GIGA-NX 100/315.1-22/4W WOS-GB2	380V	225	35.5	11	GB2	1475	DN125×DN100
Atmos GIGA-NX 100/315.1-22/4W WOS-GB3	380V	225	35.5	11	CL2	1465	DN125×DN100
Atmos GIGA-NX 100/315.1-30/4W WOS-GB2	380V	435	133	110	GB2	2980	DN125×DN100
Atmos GIGA-NX 100/315.1-30/4W WOS-GB3	380V	435	133	110	GB3	2975	DN125×DN100
Atmos GIGA-NX 100/400-22/4W WOS-GB2	380V	260	56	22	GB2	1480	DN125×DN100
Atmos GIGA-NX 100/400-22/4W WOS-GB3	380V	260	56	22	CL2	1470	DN125×DN100
Atmos GIGA-NX 100/400-30/4W WOS-GB2	380V	260	56	30	GB2	1480	DN125×DN100
Atmos GIGA-NX 100/400-30/4W WOS-GB3	380V	260	56	30	CL2	1475	DN125×DN100
Atmos GIGA-NX 100/400-37/4W-GB2	380V	260	56	37	GB2	1485	DN125×DN100
Atmos GIGA-NX 100/400-37/4W-GB3	380V	260	56	37	CL2	1485	DN125×DN100
Atmos GIGA-NX 100/400-45/4W-GB2	380V	260	56	45	GB2	1485	DN125×DN100
Atmos GIGA-NX 100/400-45/4W-GB3	380V	260	56	45	CL2	1485	DN125×DN100
Atmos GIGA-NX 100/400-55/4W-GB2	380V	260	56
Atmos GIGA-NX 100/400-55/4W-GB3	380V	260	56	55	CL2	1485	DN125×DN100
Atmos GIGA-NX 125/200-5,5/4W WOS-GB2	380V	290	14	5.5	GB2	1470	DN150×DN125
Atmos GIGA-NX 125/200-5,5/4W WOS-GB3	380V	290	14	5.5	CL2	1460	DN150×DN125
Atmos GIGA-NX 125/200-7,5/4W WOS-GB2	380V	290	14	7.5	GB2	1470	DN150×DN125
Atmos GIGA-NX 125/200-7,5/4W WOS-GB3	380V	290	14	7.5	CL2	1460	DN150×DN125
Atmos GIGA-NX 125/200-11/4W WOS-GB2	380V	290	14	11	GB2	1475	DN150×DN125
Atmos GIGA-NX 125/200-11/4W WOS-GB3	380V	290	14	11	CL2	1465	DN150×DN125
Atmos GIGA-NX 125/200-15/4W WOS-GB2	380V	290	14	15	GB2	1475	DN150×DN125
Atmos GIGA-NX 125/200-15/4W WOS-GB3	380V	290	14	15	CL2	1465	DN150×DN125
Atmos GIGA-NX 125/200-45/2W-GB2	380V	540	51	45	GB2	2970	DN150×DN125
Atmos GIGA-NX 125/200-45/2W-GB3	380V	540	51	45	GB3	2965	DN150×DN125
Atmos GIGA-NX 125/200-55/2W-GB2	380V	540	51	55	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/200-55/2W-GB3	380V	540	51	55	GB3	2970	DN150×DN125
Atmos GIGA-NX 125/200-75/2W-GB2	380V	540	51	75	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/200-75/2W-GB3	380V	540	51	75	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/200-90/2W-GB2	380V	540	51	90	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/200-90/2W-GB3	380V	540	51	90	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/200-110/2W-GB2	380V	540	51	110	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/200-110/2W-GB3	380V	540	51	110	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/250.1-7,5/4W WOS-GB2	380V	305	22	7.5	GB2	1470	DN150×DN125
Atmos GIGA-NX 125/250.1-7,5/4W WOS-GB3	380V	305	22	7.5	CL2	1460	DN150×DN125
Atmos GIGA-NX 125/250.1-11/4W WOS-GB2	380V	305	22	11	GB2	1475	DN150×DN125
Atmos GIGA-NX 125/250.1-11/4W WOS-GB3	380V	305	22	11	CL2	1465	DN150×DN125
Atmos GIGA-NX 125/250.1-15/4W WOS-GB2	380V	305	22	15	GB2	1475	DN150×DN125
Atmos GIGA-NX 125/250.1-15/4W WOS-GB3	380V	305	22	15	CL2	1465	DN150×DN125
Atmos GIGA-NX 125/250.1-18,5/4W WOS-GB2	380V	305	22	18.5	GB2	1480	DN150×DN125
Atmos GIGA-NX 125/250.1-18,5/4W WOS-GB3	380V	305	22	18.5	CL2	1470	DN150×DN125
Atmos GIGA-NX 125/250.1-22/4W WOS-GB2	380V	305	22	22	GB2	1480	DN150×DN125
Atmos GIGA-NX 125/250.1-22/4W WOS-GB3	380V	305	22	22	CL2	1470	DN150×DN125
Atmos GIGA-NX 125/250.1-55/2W-GB2	380V	600	85	55	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/250.1-55/2W-GB3	380V	600	85	55	GB3	2970	DN150×DN125
Atmos GIGA-NX 125/250.1-75/2W-GB2	380V	600	85	75	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/250.1-75/2W-GB3	380V	600	85	75	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/250.1-90/2W-GB2	380V	600	85	90	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/250.1-90/2W-GB3	380V	600	85	90	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/250.1-110/2W-GB2	380V	600	85	110	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/250.1-110/2W-GB3	380V	600	85	110	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/250.1-132/2W-GB2	380V	600	85	132	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/250.1-132/2W-GB3	380V	600	85	132	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/250.1-160/2W-GB2	380V	600	85	160	GB2	2980	DN150×DN125
Atmos GIGA-NX 125/250.1-160/2W-GB3	380V	600	85	160	GB3	2975	DN150×DN125
Atmos GIGA-NX 125/315-15/4W WOS-GB2	380V	330	38	15	GB2	1475	DN150×DN125
Atmos GIGA-NX 125/315-15/4W WOS-GB3	380V	330	38	15	CL2	1465	DN150×DN125
Atmos GIGA-NX 125/315-18.5/4W WOS-GB2	380V	330	38	18.5	GB2	1480	DN150×DN125
Atmos GIGA-NX 125/315-18.5/4W WOS-GB3	380V	330	38	18.5	CL2	1470	DN150×DN125
Atmos GIGA-NX 125/315-22/4W WOS-GB2	380V	330	38	22	GB2	1480	DN150×DN125
Atmos GIGA-NX 125/315-22/4W WOS-GB3	380V	330	38	22	CL2	1470	DN150×DN125
Atmos GIGA-NX 125/315-30/4W WOS-GB2	380V	330	38	30	GB2	1480	DN150×DN125
Atmos GIGA-NX 125/315-30/4W WOS-GB3	380V	330	38	30	CL2	1475	DN150×DN125
Atmos GIGA-NX 125/315-37/4W-GB2	380V	330	38	37	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/315-37/4W-GB3	380V	330	38	37	CL2	1485	DN150×DN125
Atmos GIGA-NX 125/315-45/4W-GB2	380V	330	38	45	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/315-45/4W-GB3	380V	330	38	45	CL2	1485	DN150×DN125
Atmos GIGA-NX 125/400-30/4W WOS-GB2	380V	420	61	30	GB2	1480	DN150×DN125
Atmos GIGA-NX 125/400-30/4W WOS-GB3	380V	420	61	30	CL2	1475	DN150×DN125
Atmos GIGA-NX 125/400-37/4W-GB2	380V	420	61	37	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/400-37/4W-GB3	380V	420	61	37	CL2	1485	DN150×DN125
Atmos GIGA-NX 125/400-45/4W-GB2	380V	420	61	45	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/400-45/4W-GB3	380V	420	61	45	CL2	1485	DN150×DN125
Atmos GIGA-NX 125/400-55/4W-GB2	380V	420	61	55	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/400-55/4W-GB3	380V	420	61	55	CL2	1485	DN150×DN125
Atmos GIGA-NX 125/400-75/4W-GB2	380V	420	61	75	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/400-75/4W-GB3	380V	420	61	75	CL2	1485	DN150×DN125
Atmos GIGA-NX 125/400-90/4W-GB2	380V	420	61	90	GB2	1485	DN150×DN125
Atmos GIGA-NX 125/400-90/4W-GB3	380V	420	61	90	CL2	1485	DN150×DN125
Atmos GIGA-NX 150/200-7.5/4W WOS-GB2	380V	390	11	7.5	GB2	1470	DN200×DN150
Atmos GIGA-NX 150/200-7.5/4W WOS-GB3	380V	390	11	7.5	CL2	1460	DN200×DN150
Atmos GIGA-NX 150/200-11/4W WOS-GB2	380V	390	11	11	GB2	1475	DN200×DN150
Atmos GIGA-NX 150/200-11/4W WOS-GB3	380V	390	11	11	CL2	1465	DN200×DN150
Atmos GIGA-NX 150/200-15/4W WOS-GB2	380V	390	11	15	GB2	1475	DN200×DN150
Atmos GIGA-NX 150/200-15/4W WOS-GB3	380V	390	11	15	CL2	1465	DN200×DN150
Atmos GIGA-NX 150/200-75/2W-GB2	380V	770	42	75	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/200-75/2W-GB3	380V	770	42	75	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/200-90/2W-GB2	380V	770	42	90	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/200-90/2W-GB3	380V	770	42	90	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/200-110/2W-GB2	380V	770	42	110	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/200-110/2W-GB3	380V	770	42	110	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/250-11/4W WOS-GB2	380V	440	20	11	GB2	1475	DN200×DN150
Atmos GIGA-NX 150/250-11/4W WOS-GB3	380V	440	20	11	CL2	1465	DN200×DN150
Atmos GIGA-NX 150/250-15/4W WOS-GB2	380V	440	20	15	GB2	1475	DN200×DN150
Atmos GIGA-NX 150/250-15/4W WOS-GB3	380V	440	20	15	CL2	1465	DN200×DN150
Atmos GIGA-NX 150/250-18.5/4W WOS-GB2	380V	440	20	18.5	GB2	1480	DN200×DN150
Atmos GIGA-NX 150/250-18.5/4W WOS-GB3	380V	440	20	18.5	CL2	1470	DN200×DN150
Atmos GIGA-NX 150/250-22/4W WOS-GB2	380V	440	20	22	GB2	1480	DN200×DN150
Atmos GIGA-NX 150/250-22/4W WOS-GB3	380V	440	20	22	CL2	1470	DN200×DN150
Atmos GIGA-NX 150/250-30/4W WOS-GB2	380V	440	20	30	GB2	1480	DN200×DN150
Atmos GIGA-NX 150/250-30/4W WOS-GB3	380V	440	20	30	CL2	1475	DN200×DN150
Atmos GIGA-NX 150/250-90/2W-GB2	380V	850	72	90	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/250-90/2W-GB3	380V	850	72	90	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/250-110/2W-GB2	380V	850	72	110	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/250-110/2W-GB3	380V	850	72	110	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/250-132/2W-GB2	380V	850	72	132	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/250-132/2W-GB3	380V	850	72	132	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/250-160/2W-GB2	380V	850	72	160	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/250-160/2W-GB3	380V	850	72	160	GB3	2975	DN200×DN150
Atmos GIGA-NX 150/250-200/2W-GB2	380V	850	72	200	GB2	2980	DN200×DN150
Atmos GIGA-NX 150/250-200/2W-GB3	380V	850	72	200	GB3	2980	DN200×DN150
Atmos GIGA-NX 150/315-18.5/4W WOS-GB2	380V	450	34.5	18.5	GB2	1480	DN200×DN150
Atmos GIGA-NX 150/315-18.5/4W WOS-GB3	380V	450	34.5	18.5	CL2	1470	DN200×DN150
Atmos GIGA-NX 150/315-22/4W WOS-GB2	380V	450	34.5	22	GB2	1480	DN200×DN150
Atmos GIGA-NX 150/315-22/4W WOS-GB3	380V	450	34.5	22	CL2	1470	DN200×DN150
Atmos GIGA-NX 150/315-30/4W WOS-GB2	380V	450	34.5	30	GB2	1480	DN200×DN150
Atmos GIGA-NX 150/315-30/4W WOS-GB3	380V	450	34.5	30	CL2	1475	DN200×DN150
Atmos GIGA-NX 150/315-37/4W-GB2	380V	450	34.5	37	GB2	1485	DN200×DN150
Atmos GIGA-NX 150/315-37/4W-GB3	380V	450	34.5	37	CL2	1485	DN200×DN150
Atmos GIGA-NX 150/315-45/4W-GB2	380V	450	34.5	45	GB2	1485	DN200×DN150
Atmos GIGA-NX 150/315-45/4W-GB3	380V	450	34.5	45	CL2	1485	DN200×DN150
Atmos GIGA-NX 150/315-55/4W-GB2	380V	450	34.5	55	GB2	1485	DN200×DN150
Atmos GIGA-NX 150/315-55/4W-GB3	380V	450	34.5	55	CL2	1485	DN200×DN150
Atmos GIGA-NX200/400-45/4W-GB2	380V			45	GB2	1485	DN250×DN200
Atmos GIGA-NX200/400-45/4W-GB3	380V			45	CL2	1485	DN250×DN200
Atmos GIGA-NX200/400-55/4W-GB2	380V			55	GB2	1485	DN250×DN200
Atmos GIGA-NX200/400-55/4W-GB3	380V			55	CL2	1485	DN250×DN200
Atmos GIGA-NX200/400-75/4W-GB2	380V			75	GB2	1485	DN250×DN200
Atmos GIGA-NX200/400-75/4W-GB3	380V			75	CL2	1485	DN250×DN200
Atmos GIGA-NX200/400-90/4W-GB2	380V			90	GB2	1485	DN250×DN200
Atmos GIGA-NX200/400-90/4W-GB3	380V			90	CL2	1485	DN250×DN200
Atmos GIGA-NX200/400-110/4W-GB2	380V			110	GB2	1490	DN250×DN200
Atmos GIGA-NX200/400-110/4W-GB3	380V			110	CL2	1485	DN250×DN200
Atmos GIGA-NX200/400-132/4W-GB2	380V			132	GB2	1490	DN250×DN200
Atmos GIGA-NX200/400-132/4W-GB3	380V			132	-	1485	DN250×DN200
Atmos GIGA-NX200/400-160/4W-GB2	380V			160	GB2	1490	DN250×DN200
Atmos GIGA-NX200/400-160/4W-GB3	380V			160	CL2	1485	DN250×DN200
Atmos GIGA-NX250/260-22/4W-GB2	380V			22	GB2	1480	DN250×DN250
Atmos GIGA-NX250/260-22/4W-GB3	380V			22	CL2	1470	DN250×DN250
Atmos GIGA-NX250/260-30/4W-GB2	380V			30	GB2	1480	DN250×DN250
Atmos GIGA-NX250/260-30/4W-GB3	380V			30	CL2	1475	DN250×DN250

产品中心
